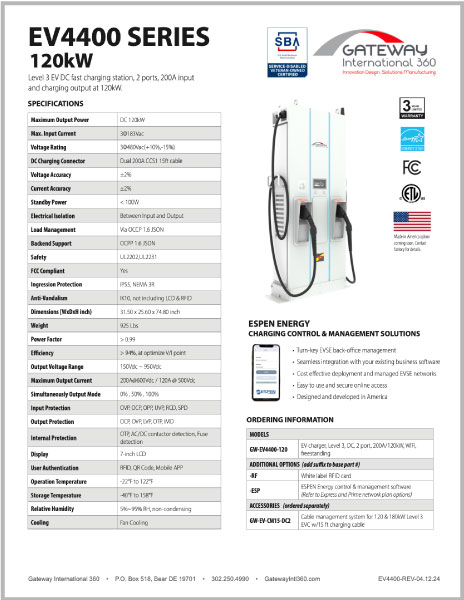

EV4400 SERIES
120kW
Level 3 EV DC fast charging station, 2 ports, 200A input and charging output at 120kW
EV4400 Specifications
- Maximum Output Power DC 120kW
- Max. Input Current 3Φ183Vac
- Voltage Rating 3Φ480Vac(+10%,-15%)
- DC Charging Connector Dual 200A CCS1 15ft cable
- Voltage Accuracy ±2%
- Current Accuracy ±2%
- Standby Power < 100W
- Electrical Isolation Between Input and Output
- Load Management Via OCCP 1.6 JSON
- Backend Support OCPP 1.6 JSON
- Safety UL2202,UL2231
- FCC Compliant Yes
- Ingression Protection IP55, NEMA 3R
- Anti-Vandalism IK10, not including LCD & RFID
- Dimensions (WxDxH inch) 31.50 x 25.60 x 74.80 inch
- Weight 925 Lbs
- Power Factor > 0.99
- Efficiency > 94%, at optimize V/I point
- Output Voltage Range 150Vdc ~ 950Vdc
- Maximum Output Current 200A@600Vdc / 120A @ 500Vdc
- Simultaneously Output Mode 0% , 50% , 100%
- Input Protection OVP, OCP, OPP, UVP, RCD, SPD
- Output Protection OCP, OVP, LVP, OTP, IMD
- Internal Protection OTP, AC/DC contactor detection, Fuse detection
- Display 7-inch LCD
- User Authentication RFID, QR Code, Mobile APP
- Operation Temperature -22°F to 122°F
- Storage Temperature -40°F to 158°F
- Relative Humidity 5%~95% RH, non-condensing
- Cooling Fan Cooling
EV4400
PARTS & ORDERING
| Models | Description |
|---|---|
| GW-EV4400-120 | EV charger, Level 3, DC, 2 port, 200A/120kW, WiFi, freestanding |
| ADDITIONAL OPTIONS (add suffix to base part #) | Description |
|---|---|
| -RF | White label RFID card |
| -ESP | ESPEN Energy control & management software (Refer to Express and Prime network plan options) |
| Accessories (ordered separately) | Description |
|---|---|
| GW-EV-CM15-DC2 | Cable management system for 120 & 180kW Level 3 EVC w/15 ft charging cable |
