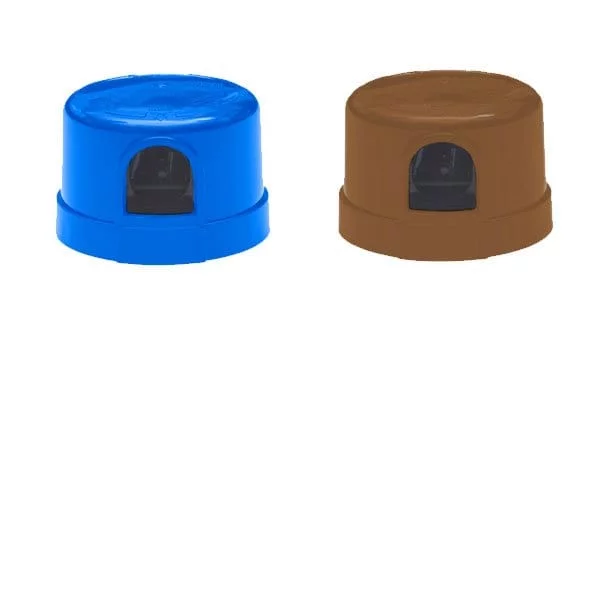

LL127 SERIES
Long life photocontrol
Long-Life Photocells for LED luminaires that require dusk to dawn control, 105 to 305 VAC, 60Hz, 20 year warranty
- LED luminaires that require dusk-to-dawn control
- Recommended for luminaires that use solid-state ballasts/drivers (CFL, induction, electronic HID)
LL127 Specifications
Features
- Designed to provide long life, enhanced light sensitivity and superior surge protection when used with LED luminaires
- 20 year warranty
- IP-65
- Anti-UV impact resistant polypropylene cover
- Filtered Silicon Light Sensor – sensitive to sunlight but not LED
- Sealed relay
- 2 or 4 MOVs rated for 860J+ or 1720J/10,000 amps each. 430J each
- Base gasket has a continuous use temperature of 105 C. Melt 185 C
- 2-5 second turn-off delay
- Heavy .105 inch thick wall black cover standard — other colors optional
Operating Characteristics
- Voltage 105 to 305 VAC, 60Hz
- Load rating: 1800VA driver or ballast load, 8A
- Up to 200 amp inrush. Test as specified in ANSI C136.10
- -40°C to +70°C ambient temperature
- ANSI Standard 1.5±0.3 fc Turn ON, Turn OFF is 1.5 times the Turn ON level. Other options available
- 2-5 second Turn OFF delay
- Switch: > 81000 On/Off operations at rated load
- Dielectric, 5000VAC
Regulatory Listings
- Meets ANSI C136.10 and UL 773
- ROHS compliant
- Manufactured in an ISO certified facility
- Surge-rated to ANSI C136.10 Extreme surge level (20Kv, 10Ka, 10 Pulses)
- Zero-Cross detection
LL127
PARTS & ORDERING
| Models | Voltage | Turn On Levels | Cover Color | Failure Mode | Suffix As Needed (MOV) |
|---|---|---|---|---|---|
| GW-105-TRANSLUCENT | 127 = 120-277 VAC | 1.5 = ANSI Standard 1.0 = 2.6 = IES recommendation | BK = Black BU = Blue GN = Green Y = Yellow GY = Gray M = Metal Armor Cover | None = Fail ON F = Fail OFF | 20 = 860J/ 20KA total 40 = 1720J/ 40KA total |
