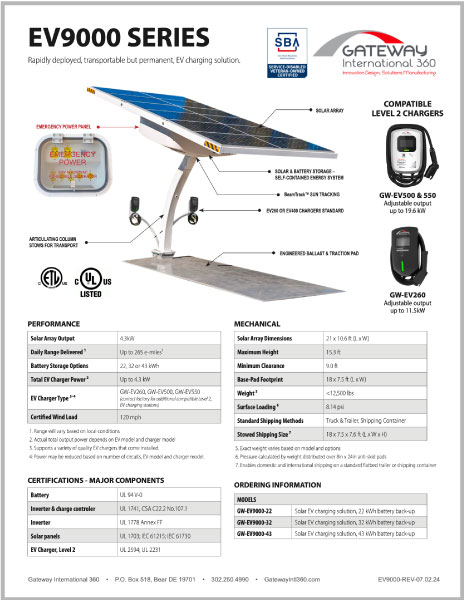

EV9000 SERIES - Gateway International 360

EV9000 SERIES

Rapidly deployed, transportable but permanent, EV charging solution.

EV9000 Series — EV9000 SERIES

EV9000 — EV9000 SERIES

Compatible Chargers

EV9000

EV Solutions

EV Solutions

EV9000 Specifications

Performance

Solar Array Output 4.3kW
Daily Range Delivered ¹ Up to 265 e-miles¹
Battery Storage Options 22, 32 or 43 kWh
Total EV Charger Power ² Up to 4.3 kW
EV Charger Type ³ˉ⁴ GW-EV260, GW-EV500, GW-EV550 (contact factory for additional compatible Level 2, EV charging stations)
Certified Wind Load 120 mph

Range will vary based on local conditions
Actual total output power depends on EV model and charger model
Supports a variety of quality EV chargers that come installed.
Power may be reduced based on number of circuits, EV model and charger model.

Mechanical

Solar Array Dimensions 21 x 10.6 ft (L x W)
Maximum Height 15.3 ft
Minimum Clearance 9.0 ft
Base-Pad Footprint 18 x 7.5 ft (L x W)
Weight ⁵ <12,500 lbs
Surface Loading ⁶ 8.14 psi
Standard Shipping Methods Truck & Trailer, Shipping Container
Stowed Shipping Size ⁷ 18 x 7.5 x 7.6 ft (L x W x H)

Exact weight varies based on model and options
Pressure calculated by weight distributed over 8in x 24in anti-skid pads
Enables domestic and international shipping on a standard flatbed trailer or shipping container

Certification - Major Components

Battery UL 94 V-0
Inverter & Charge Controler UL 1741, CSA C22.2 No.107.1
Inverter UL 1778 Annex FF
Solar Panels UL 1703; IEC 61215; IEC 61730
EV Charger, Level 2 UL 2594; UL 2231

EV9000
PARTS & ORDERING

Models	Description
GW-EV9000-22	Solar EV charging solution, 22 kWh battery back-up
GW-EV9000-32	Solar EV charging solution, 32 kWh battery back-up
GW-EV9000-43	Solar EV charging solution, 43 kWh battery back-up
