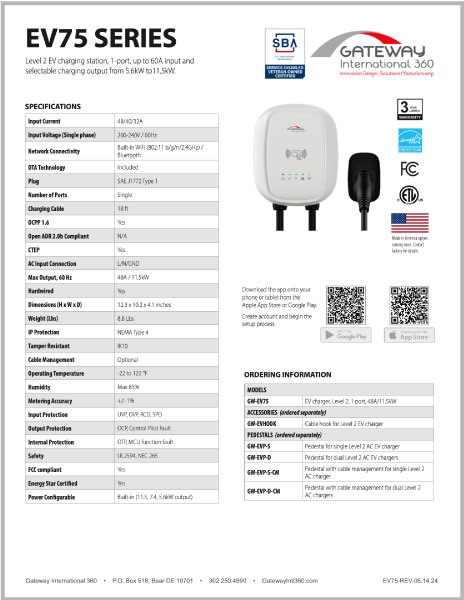

EV75 SERIES
Level 2 EV charging station
Level 2 EV charging station, 1-port, up to 60A input and selectable charging output from 5.6kW to11.5kW.
- Download the app onto your phone or tablet from the Apple App Store or Google Play
- Create account and begin the setup process
EV75 Specifications
- Input Current 48/40/32A
- Input Voltage (Single phase) 200-240V / 60Hz
- Network Connectivity Built-in WiFi (802.11 b/g/n/2.4GHz) / Bluetooth
- OTA Technology Included
- Plug SAE J1772 Type 1
- Number of Ports Single
- Charging Cable 18 ft
- OCPP 1.6 Yes
- Open ADR 2.0b Compliant N/A
- CTEP Yes
- AC Input Connection L/N/GND
- Max Output, 60 Hz 48A / 11.5kW
- Hardwired Yes
- Dimensions (H x W x D) 12.3 x 10.2 x 4.1 inches
- Weight (Lbs) 8.8 Lbs
- IP Protection NEMA Type 4
- Tamper Resistant IK10
- Cable Management Optional
- Operating Temperature -22 to 122 °F
- Humidity Max 85%
- Metering Accuracy +/- 1%
- Input Protection UVP, OVP, RCD, SPD
- Output Protection OCP, Control Pilot Fault
- Internal Protection OTP, MCU function fault
Regulatory Listings
- Safety UL2594, NEC 265
- FCC compliant Yes
- Energy Star Certified Yes
- Power Configurable Built-in (11.5, 7.4, 5.6kW output)
EV75
PARTS & ORDERING
| Models | Description |
|---|---|
| GW-EV75 | EV charger, Level 2, 1 port, 48A/11.5kW |
| ACCESSORIES (ordered separately) | Description |
|---|---|
| GW-EVHOOK | Cable hook for Level 2 EV charger |
| PEDESTALS (ordered separately) | Description |
|---|---|
| GW-EVP-S | Pedestal for single Level 2 AC EV charger |
| GW-EVP-D | Pedestal for dual Level 2 AC EV chargers |
| GW-EVP-S-CM | Pedestal with cable management for single Level 2 AC charger |
| GW-EVP-D-CM | Pedestal with cable management for dual Level 2 AC chargers |
