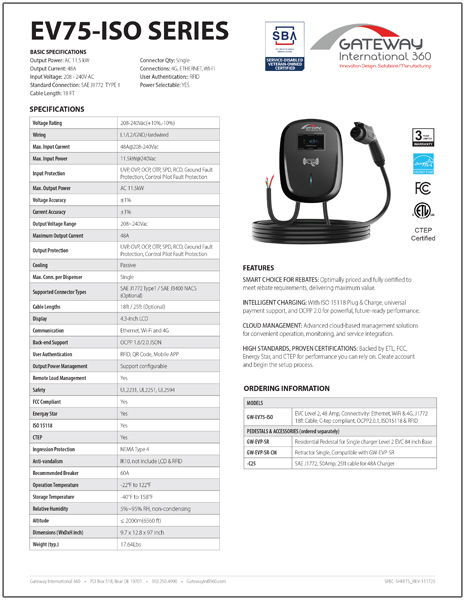

EV75-ISO SERIES
Level 2 EV charging station
Level 2 EV charging station, 1-port, up to 60A input and selectable charging output up to 11.5kW.
EV75-ISO Specifications
- Input Current 48A @ 208-240Vac
- Input Voltage (Single phase) 200-240V / 60Hz
- Network Connectivity Built-in WiFi ethernet, 4G & Bluetooth
- OTA Technology Included
- Plug SAE J1772 Type 1
- Number of Ports Single
- Charging Cable 18 ft
- OCPP 1.6 Yes
- Open ADR 2.0b Compliant N/A
- CTEP Yes
- AC Input Connection L/N/GND
- Max Output, 60 Hz 48A / 11.5kW
- Hardwired Yes
- Dimensions (W x H x D) 9.7 x 12.8 x 9.7 inches
- Weight (Lbs) 17.64 Lbs
- IP Protection NEMA Type 4
- Tamper Resistant IK10
- Cable Management Optional
- Operating Temperature -22 to 122 °F
- Humidity Max 85%
- Metering Accuracy +/- 1%
- Input Protection UVP, OVP, RCD, SPD
- Output Protection OCP, Control Pilot Fault
- Internal Protection OTP, MCU function fault
Regulatory Listings
- Certifications UL2231, UL2251, UL2594, Ctep, ISO 15118
- FCC compliant Yes
- Energy Star Certified Yes
- Power Configurable Built-in
EV75-ISO
PARTS & ORDERING
| Models | Description |
|---|---|
| GW-EV75-ISO | EV charger, Level 2, 1 port, 48A/11.5kW |
| ACCESSORIES (ordered separately) | Description |
|---|---|
| -C25 | SAE J1772, 50 Amp, 25ft cable for 48A charger |
| PEDESTALS (ordered separately) | Description |
|---|---|
| GW-EVP-SR | Pedestal for single Level 2 AC EV charger |
| GW-EVP-D-SR-CM | Pedestal for dual Level 2 AC EV chargers |
