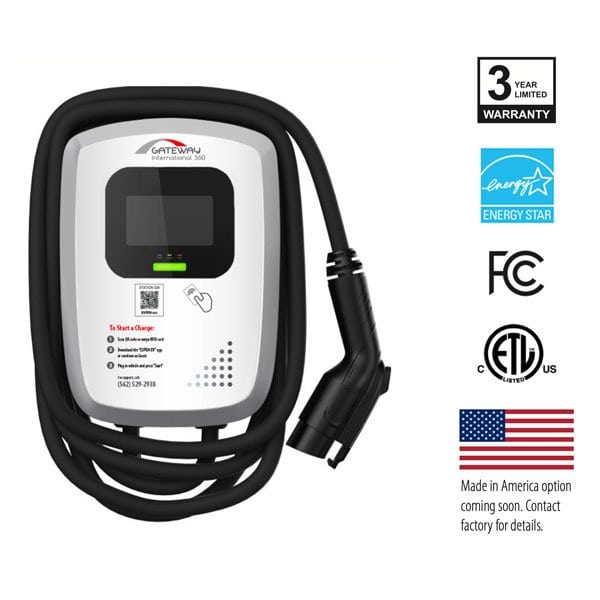

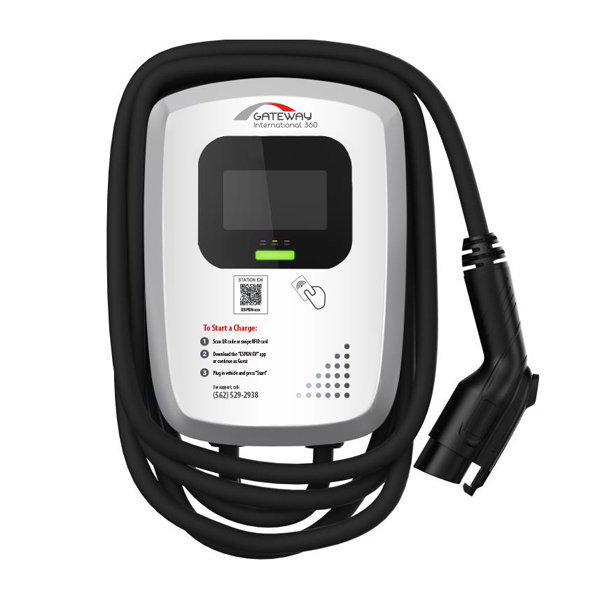

EV550 SERIES
Level 2 EV charging station, 1-port, up to 100A input and selectable charging output at 11.5kW or 19.2kW
EV550 Specifications
- Input Current 80A
- Input Voltage (Single phase) 200-240V / 60Hz
- Network Connectivity Ethernet & WiFi or Ethernet & 4G options
- RFID+QR Code Included
- Credit Card Optional
- Local Load Management Optional
- OTA Technology Included
- Plug SAE J1772 Type 1
- Number of Ports Single
- Charging Cable 18 ft
- OCPP 1.6 Yes
- Open ADR 2.0b Compliant N/A
- CTEP Yes
- AC Input Connection L/N/GND
- Max Output, 60 Hz 80A / 19.2kW
- Hardwired Yes
- Dimensions (H x W x D) 13.8 x 9.8 x 5.1 inches
- Weight (Lbs) 19.8 Lbs
- IP Protection IP65 for Charger; IP54 for cable NEMA 3
- Tamper Resistant IK08, except LCD & RFID
- Cable Management Optional
- Operating Temperature -22 to 122 °F
- Humidity Max 85%
- Metering Accuracy +/- 1%
- Input Protection UVP, OVP, RCD, SPD
- Output Protection OCP, Control Pilot Fault
- Internal Protection OTP, MCU function fault
- Safety UL2594, UL2231-1/-2
- FCC compliant Yes
- Energy Star Certified Yes
- Power Configurable Built-in (19.2 & 11.5kW output)
- LCD Display 5-inch LCD Display
EV550
PARTS & ORDERING
| Models | Description |
|---|---|
| GW-EV550-W | EV charger, Level 2, 80A/19.2kW, Ethernet & WiFi |
| GW-EV550-C | EV charger, Level 2, 80A/19.2kW, Ethernet & 4G |
| ADDITIONAL OPTIONS (add suffix to base part #) | Description |
|---|---|
| -CC | Credit card |
| -RF | White label RFID card |
| -ESP | ESPEN Energy control & management software (Refer to Express and Prime network plan options) |
| ACCESSORIES (ordered separately) | Description |
|---|---|
| GW-EVHOOK | Cable hook for Level 2 EV charger |
| PEDESTALS (ordered separately) | Description |
|---|---|
| GW-EVP-S | Pedestal for single Level 2 AC EV charger |
| GW-EVP-D | Pedestal for dual Level 2 AC EV chargers |
| GW-EVP-S-CM | Pedestal with cable management for single Level 2 AC charger |
| GW-EVP-D-CM | Pedestal with cable management for dual Level 2 AC chargers |
