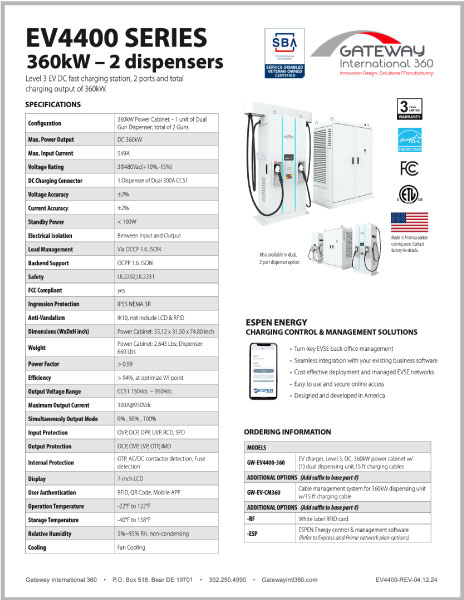

EV4400 SERIES
360kW-2 dispensers

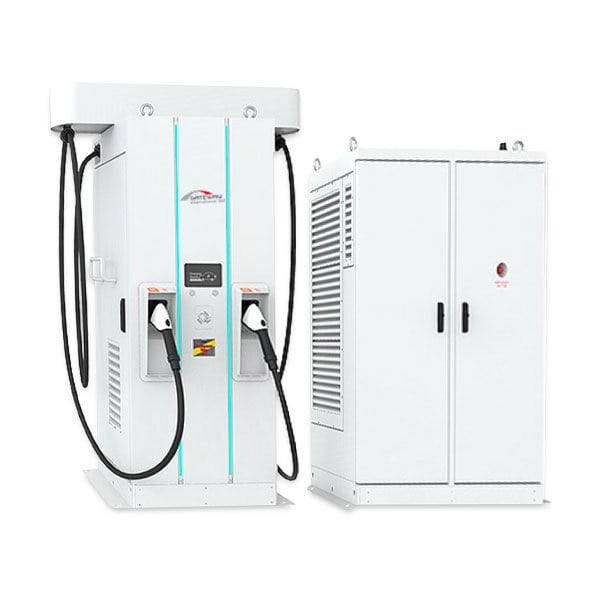

Level 3 EV DC fast charging station, 2 ports and total charging output of 360kW
![EV4400-360 Series](https://gatewayintl360.com/wp-content/uploads/2024/07/EV4400-360.jpg)
![EV4400-360 Series](https://gatewayintl360.com/wp-content/uploads/2024/07/EV4400-360-1.jpg)
EV4400 Specifications
- Configuration 360kW Power Cabinet; – 1 unit of Dual Gun Dispenser; total of 2 Guns
- Max. Power Output DC 360kW
- Max. Input Current 549A
- Voltage Rating 3Φ480Vac(+10%,-15%)
- DC Charging Connector 1 Dispenser of Dual 300A CCS1
- Voltage Accuracy ±2%
- Current Accuracy ±2%
- Standby Power < 100W
- Electrical Isolation Between Input and Output
- Load Management Via OCCP 1.6 JSON
- Backend Support OCPP 1.6 JSON
- Safety UL2202,UL2231
- FCC Compliant yes
- Ingression Protection IP55 NEMA 3R
- Anti-Vandalism IK10, not include LCD & RFID
- Dimensions (WxDxH inch) Power Cabinet: 55.12 x 31.50 x 74.80 inch
- Weight Power Cabinet: 2,643 Lbs; Dispenser: 660 Lbs
- Power Factor > 0.99
- Efficiency > 94%, at optimize V/I point
- Output Voltage Range CCS1 150Vdc ~ 950Vdc
- Maximum Output Current 300A@950Vdc
- Simultaneously Output Mode 0% , 50% , 100%
- Input Protection OVP, OCP, OPP, UVP, RCD, SPD
- Output Protection OCP, OVP, LVP, OTP, IMD
- Internal Protection OTP, AC/DC contactor detection, Fusedetection
- Display 7-inch LCD
- User Authentication RFID, QR Code, Mobile APP
- Operation Temperature -22°F to 122°F
- Storage Temperature -40°F to 158°F
- Relative Humidity 5%~95% RH, non-condensing
- Cooling Fan Cooling
EV4400
PARTS & ORDERING
Models | Description |
---|---|
GW-EV4400-360 | EV charger, Level 3, DC, 360kW power cabinet w/ (1) dual dispensing unit,15 ft charging cables |
ADDITIONAL OPTIONS (add suffix to base part #) | Description |
---|---|
GW-EV-CM360 | Cable management system for 360kW dispensing unit w/15 ft charging cable |
ADDITIONAL OPTIONS (add suffix to base part #) | Description |
---|---|
-RF | White label RFID card |
-ESP | ESPEN Energy control & management software (Refer to Express and Prime network plan options) |
