EV4400 SERIES
60kW

EVC Level 3 DCFC 60kW, 7” Display; Dual Gun, 2 units of 125A CCS1, 15ft or 23ft Cable options (White). Ethernet+WiFi+4G, ISO15118, OCPP, DC Meters

EV4400 Series — EV4400 SERIES

EV4400 — EV4400 SERIES

EV4400 Series

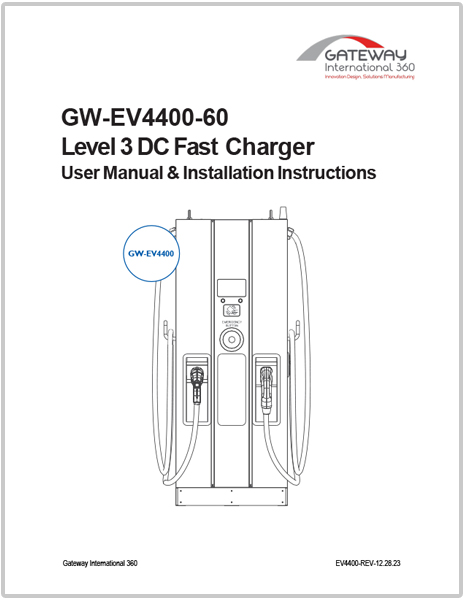

Installation manual

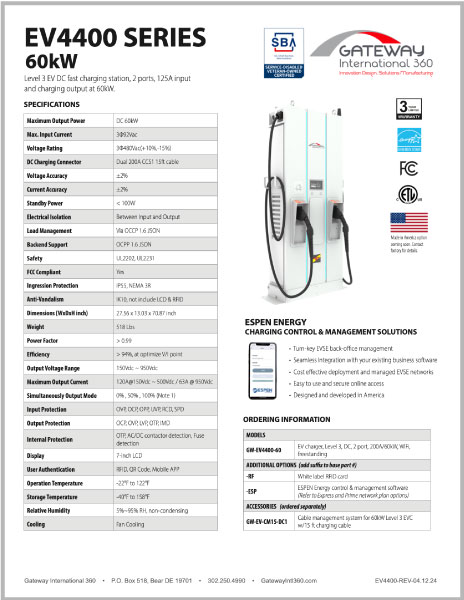

EV4400 Specifications

Maximum Output Power DC 60kW
Max. Input Current 3Φ92Vac
Voltage Rating 3Φ480Vac(+10%,-15%)
DC Charging Connector Dual 200A CCS1 15ft cable
Voltage Accuracy ±2%
Current Accuracy ±2%
Standby Power < 100W
Electrical Isolation Between Input and Output
Load Management Via OCCP 1.6 JSON
Backend Support OCPP 1.6 JSON
Safety UL2202, UL2231
FCC Compliant Yes
Ingression Protection IP55, NEMA 3R
Anti-Vandalism IK10, not include LCD & RFID
Dimensions (WxDxH inch) 27.56 x 13.03 x 70.87 inch
Weight 518 Lbs
Power Factor > 0.99

Ingression Protection IP55, NEMA 3R
Anti-Vandalism IK10, not include LCD & RFID
Dimensions (WxDxH inch) 27.56 x 13.03 x 70.87
Efficiency > 94%, at optimize V/I point
Output Voltage Range 150Vdc ~ 950Vdc
Maximum Output Current 120A@150Vdc ~ 500Vdc / 63A @ 950Vdc
Simultaneously Output Mode 0% , 50% , 100% (Note 1)
Input Protection OVP, OCP, OPP, UVP, RCD, SPD
Output Protection OCP, OVP, LVP, OTP, IMD
Internal Protection OTP, AC/DC contactor detection, Fuse detection
Display 7-inch LCD
User Authentication RFID, QR Code, Mobile APP
Operation Temperature -22°F to 122°F
Storage Temperature -40°F to 158°F
Relative Humidity 5%~95% RH, non-condensing
Cooling Fan Cooling

EV4400
PARTS & ORDERING

Models	Description
GW-EV-4400-60-SS15-ISO GW-EV-4400-60-SS23-ISO	EVC Level 3 DCFC 60kW, 7” Display; Dual Gun, 2 units of 125A CCS1, 15ft or 23ft Cable options (White). Ethernet+WiFi+4G, ISO15118, OCPP, DC Meters

Accessories (ordered separately)	Description
GW-EVCM15-DC1	Cable Management for 15ft cable Level 3 DC Charger 60kW
GW-EV-CM23-DC1	Cable Management for 23ft cable Level 3 DC Charger 60kW
