EV4040/60 SERIES
40kW & 60kW

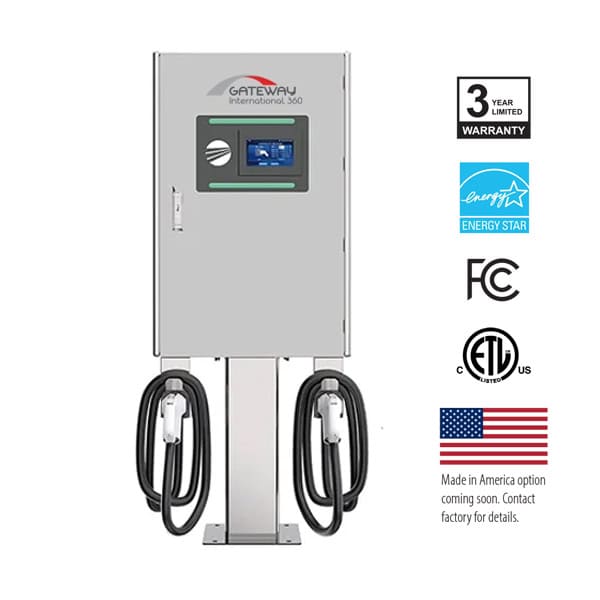

Level 3 EV DC fast charging station, 2 ports, 49A or 73A input and charging output at 40kW or 60kW

GW-EV4040

App Information

EV4040 Series

Installation manual

EV4040/60 Specifications

Maximum Output Power DC 40kW/60kW
Max. Input Current 49A/73A
Voltage Rating 3Φ480Vac(+10%,-15%)
DC Charging Connector Dual 200A CCS1 15ft cable
Voltage Accuracy ±2%
Current Accuracy ±2%
Standby Power < 100W
Electrical Isolation Between Input and Output
Load Management Via OCCP 1.6 JSON
Backend Support OCPP 1.6 JSON
Safety UL2202, UL2231
FCC Compliant Yes
Dimensions (WxDxH inch) 25.59 x 5.91 x 39.37 inch
Weight 203lbs/223lbs
Power Factor > 0.98

Ingression Protection IP55, NEMA 3R
Anti-Vandalism IK10, not include LCD & RFID
Efficiency > 94%, at optimize V/I point
Output Voltage Range 150Vdc ~ 1000Vdc
Maximum Output Current 125A/200A
Simultaneously Output Mode 0% , 50% , 100% (Note 1)
Input Protection OVP, OCP, OPP, UVP, RCD, SPD
Output Protection OCP, OVP, LVP, OTP, IMD
Internal Protection OTP, AC/DC contactor detection, Fuse detection
Display 7-inch LCD
User Authentication RFID, QR Code, Mobile APP
Operation Temperature -22°F to 122°F
Storage Temperature -40°F to 158°F
Relative Humidity 5%~95% RH, non-condensing
Cooling Fan Cooling

EV4040
PARTS & ORDERING

Models	Description
GW-EV4040	EV charger, Level 3, DC, 2 port, 125A/40kW, Ethernet &4Gcellular , freestanding or wall mount
GW-EV4060	EV charger, Level 3, DC, 2 port, 200A/60kW, Ethernet & 4G cellular, freestanding or wall mount

ADDITIONAL OPTIONS (add suffix to base part #)	Description
-RF	White label RFID card
-ESP	ESPEN Energy control & management software (Refer to Express and Prime network plan options)

Accessories (ordered separately)	Description
GW-EV-CM46-DC	Cable management system for 40kW or 60kW, Level 3, EVC w/25 ft charging cables
