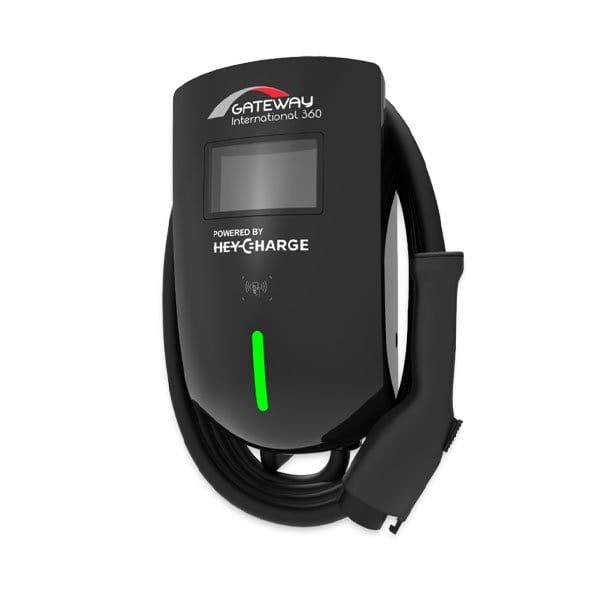

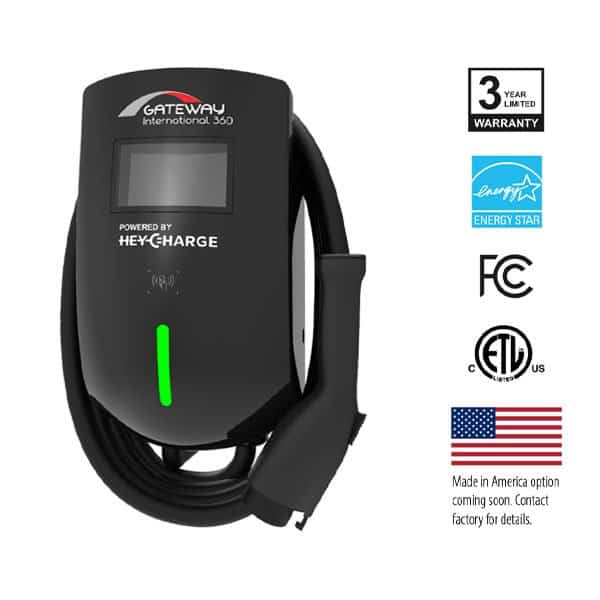

EV260 SERIES
SMART EV CHARGING WITHOUT INTERNET
Level 2 EV charging station, 1-port, up to 60A input and selectable charging output from 3.8KW to11.5kW
EV260 Specifications
- Input Current 48/40/32/16A
- Input Voltage (Single phase) 200-240V / 60Hz
- Network Connectivity WiFi & 4G
- RFID+QR Code Included
- Credit Card N/A
- Local Load Management Integrated
- OTA Technology Included
- Plug SAE J1772 Type 1
- Number of Ports Single
- Charging Cable 16 ft
- OCPP 1.6 Yes
- Open ADR 2.0b Compliant N/A
- CTEP Yes
- AC Input Connection L/N/GND
- Max Output, 60 Hz 48A / 11.5kW
- Hardwired Yes
- Dimensions (H x W x D) 14.2 x 7.1 x 6.3 inches
- Weight (Lbs) 15.7 lbs
- IP Protection Type 3, IP54
- Tamper Resistant IK08
- Cable Management Optional
- Operating Temperature -22 to 122 °F
- Humidity Max 85%
- Metering Accuracy +/- 1%
- Input Protection UVP, OVP, RCD, SPD
- Output Protection OCP, Control Pilot Fault
- Internal Protection OTP, MCU function fault
- Safety UL2594, UL2231-1/-2
- FCC compliant Yes
- Energy Star Certified Yes
- Power Configurable Built-in (11.5, 7.4, 5.6, 3.8kW output)
- LCD Display None
EV260
PARTS & ORDERING
| Models | Description |
|---|---|
| GW-EV260-HC | EV charger, Level 2, 1 port, 48A/11.5kW, HeyCharge control and management software enabled |
| ACCESSORIES (ordered separately) | Description |
|---|---|
| GW-EVHOOK | Cable hook for Level 2 EV charger |
| PEDESTALS (ordered separately) | Description |
|---|---|
| GW-EVP-S | Pedestal for single Level 2 AC EV charger |
| GW-EVP-D | Pedestal for dual Level 2 AC EV chargers |
| GW-EVP-S-CM | Pedestal with cable management for single Level 2 AC charger |
| GW-EVP-D-CM | Pedestal with cable management for dual Level 2 AC chargers |
