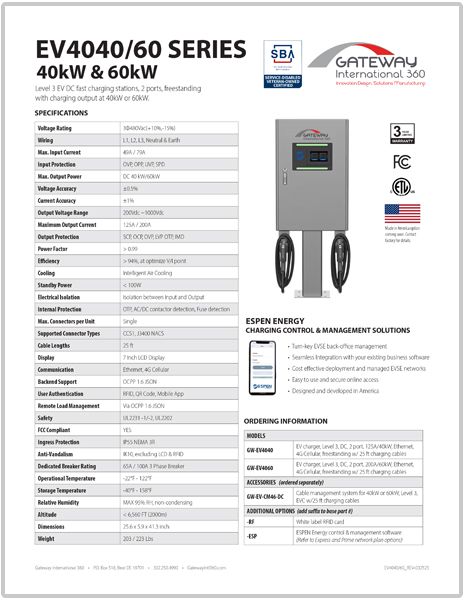

EV4040/60 SERIES
40kW & 60kW
EVC Level 3 DCFC 40kW or 60kW, Wall or Pedestal Mount, Dual Guns, 200A CCS1 & NACS, Ethernet and 4G, RFID, OCPP, and 25ft Cable. Gray
EV4040 40/60kW Specifications
- Maximum Output Power DC 40kW/60kW
- Max. Input Current 49A/73A
- Voltage Rating 3Φ480Vac(+10%,-15%)
- DC Charging Connector Dual 200A CCS1 15ft cable
- Voltage Accuracy ±2%
- Current Accuracy ±2%
- Standby Power < 100W
- Electrical Isolation Between Input and Output
- Load Management Via OCCP 1.6 JSON
- Backend Support OCPP 1.6 JSON
- Safety UL2202, UL2231
- FCC Compliant Yes
- Dimensions (WxDxH inch) 25.59 x 5.91 x 39.37 inch
- Weight 203lbs/223lbs
- Power Factor > 0.98
- Ingression Protection IP55, NEMA 3R
- Anti-Vandalism IK10, not include LCD & RFID
- Efficiency > 94%, at optimize V/I point
- Output Voltage Range 150Vdc ~ 1000Vdc
- Maximum Output Current 125A/200A
- Simultaneously Output Mode 0% , 50% , 100% (Note 1)
- Input Protection OVP, OCP, OPP, UVP, RCD, SPD
- Output Protection OCP, OVP, LVP, OTP, IMD
- Internal Protection OTP, AC/DC contactor detection, Fuse detection
- Display 7-inch LCD
- User Authentication RFID, QR Code, Mobile APP
- Operation Temperature -22°F to 122°F
- Storage Temperature -40°F to 158°F
- Relative Humidity 5%~95% RH, non-condensing
- Cooling Fan Cooling
EV4040
PARTS & ORDERING
| Models | Description |
|---|---|
| GW-EV4040-40-W GW-EV4040-40-P | EVC Level 3 DCFC 40kW Wall or Pedestal Mount, Dual Guns, 200A CCS1 & NACS, Ethernet and 4G, RFID, OCPP, with 25ft Cable. Gray |
| GW-EV4040-60-W GW-EV4040-60-P | EVC Level 3 DCFC 60kW Wall or Pedestal Mount, Dual Guns, 200A CCS1 & NACS, Ethernet and 4G, RFID, OCPP, with 25ft Cable. Gray |
| Accessories (ordered separately) | Description |
|---|---|
| GW-EV4040-PCM-BA | Pedestal with Cable Management for Pedestal-Mount DCFC 40kW & 60kW; BABA-Compliant |
